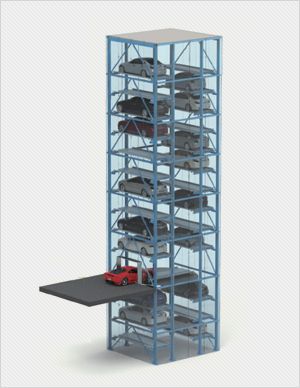

This is the parking device which is designed so that the vehicle is automatically transported and parked by the transporter which is moved up and down in the fixed parking compartments arranged for several stories. This is suitable for intermediate and large size building and coming in and going out are fast and in accordance with the coming in and going out location, there are lower section checking-in, intermediate section checking-in, and upper section checking-in type. In addition, there are outside independent steel tower type and building built-in type in accordance with the type of building.

Features & Benefits

• Fast coming in and going out can be accomplished by the high speed vector control.
• Large number of vehicle can be incorporated into a narrow space.
• The operation is quiet with low noise and vibration.
• Coming in and going out are easy due to the built-in turntable
• Retrieval and use of data are simple due to the utilization of touch screen.

video

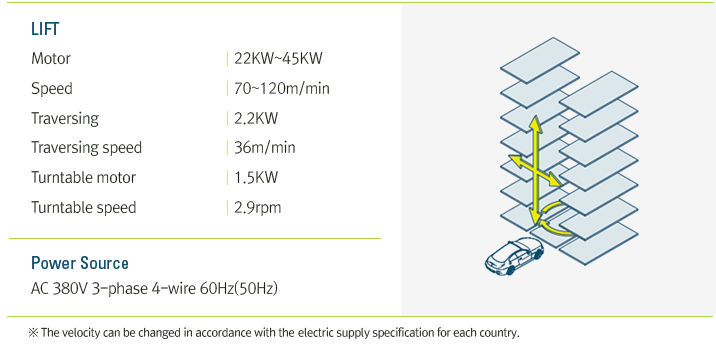

Performance List

Drawing Download
